PIN CODE VW GOLF IV & V

PIN CODE VW GOLF IV & V is a software tool designed to read or extract the immobilizer (IMMO) login or PIN code from the instrument cluster or ECU of Volkswagen Golf IV and V models. The tool supports different ECU and instrument cluster systems, including Magneti Marelli and Bosch units.

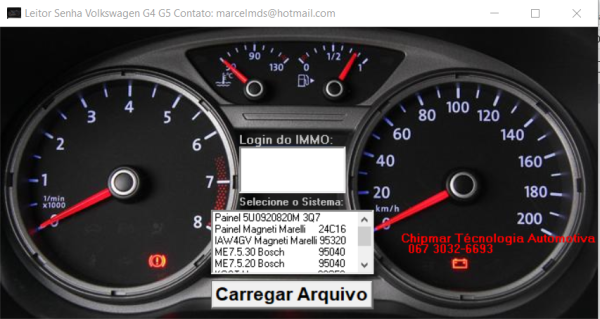

Key Components:

1. Login do IMMO:
   • This is where the immobilizer code (PIN) is displayed after extracting it from the selected system.
2. Selecione o Sistema (Select the System):
   • The drop-down menu lists the different systems and ECUs supported by the tool. The options include:
     • Painel Magneti Marelli 24C16: Likely referring to a Magneti Marelli instrument cluster with a 24C16 EEPROM.
     • IAW4GV Magneti Marelli 95320: Refers to a Magneti Marelli ECU with a 95320 EEPROM.
     • ME7.5.30 Bosch 95040: A Bosch ECU model used in various VW models.
     • ME7.5.20 Bosch 95040: Another Bosch ECU model, slightly different from the ME7.5.30.
3. Carregar Arquivo (Load File):
   • This button allows the user to load an EEPROM dump file from the selected system. The software then processes this file to extract the immobilizer login (PIN).

Usage:

• To extract the PIN:
  • Select the appropriate system from the drop-down menu that corresponds to the ECU or instrument cluster of the vehicle.
  • Load the corresponding EEPROM dump file using the “Carregar Arquivo” button.
  • The software will decode the file and display the immobilizer login (PIN) in the “Login do IMMO” field.
