PSA ENGINE ECU CODE

PSA ENGINE ECU CODE is designed for handling EEPROM (Electrically Erasable Programmable Read-Only Memory) encoding and decoding for a variety of ECU models used in PSA Group vehicles (Peugeot, Citroën, etc.). Here’s a breakdown of the key functionalities:

Supported ECU Models:

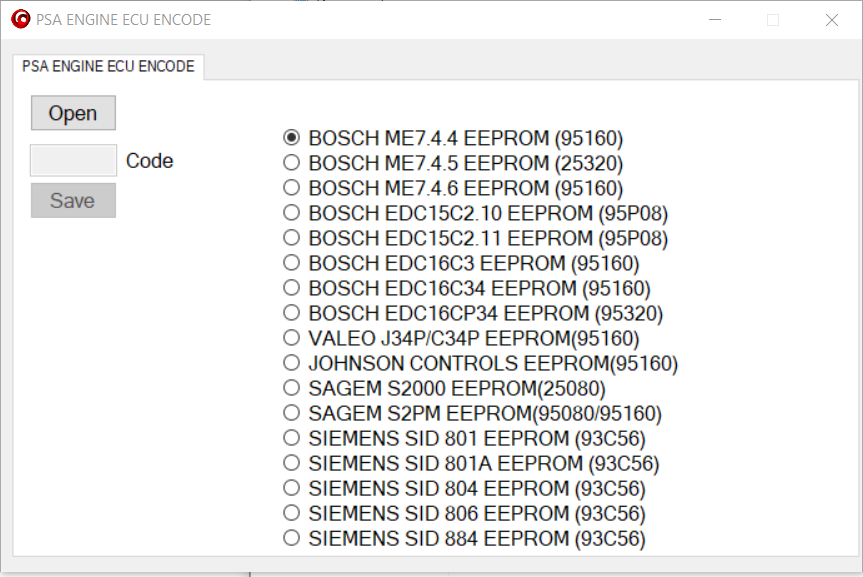

The software supports various ECUs from different manufacturers. Below are the supported models, as listed in the interface:

• Bosch:
  • ME7.4.4 EEPROM (95160)
  • ME7.4.5 EEPROM (25320)
  • ME7.4.6 EEPROM (95160)
  • EDC15C2.10 EEPROM (95P08)
  • EDC15C2.11 EEPROM (95P08)
  • EDC16C3 EEPROM (95160)
  • EDC16C34 EEPROM (95160)
  • EDC16CP34 EEPROM (95320)
• Valeo:
  • J34P/C34P EEPROM (95160)
• Johnson Controls:
  • EEPROM (95160)
• Sagem:
  • S2000 EEPROM (25080)
  • S2PM EEPROM (95080/95160)
• Siemens:
  • SID 801 EEPROM (93C56)
  • SID 801A EEPROM (93C56)
  • SID 804 EEPROM (93C56)
  • SID 806 EEPROM (93C56)
  • SID 884 EEPROM (93C56)

Key Functionalities:

1. Open and Edit EEPROM Files:
   • The software allows users to open specific EEPROM files associated with the listed ECUs. This is critical for tasks such as decoding immobilizer information, adjusting settings, or preparing an ECU for installation in a different vehicle.
2. Save Modified Files:
   • After making the necessary changes to the EEPROM data, users can save the modified file, which can then be written back to the ECU.
